特點

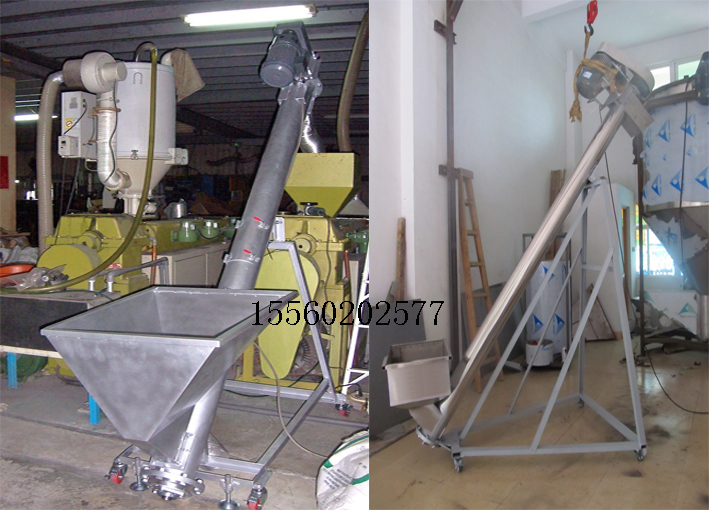

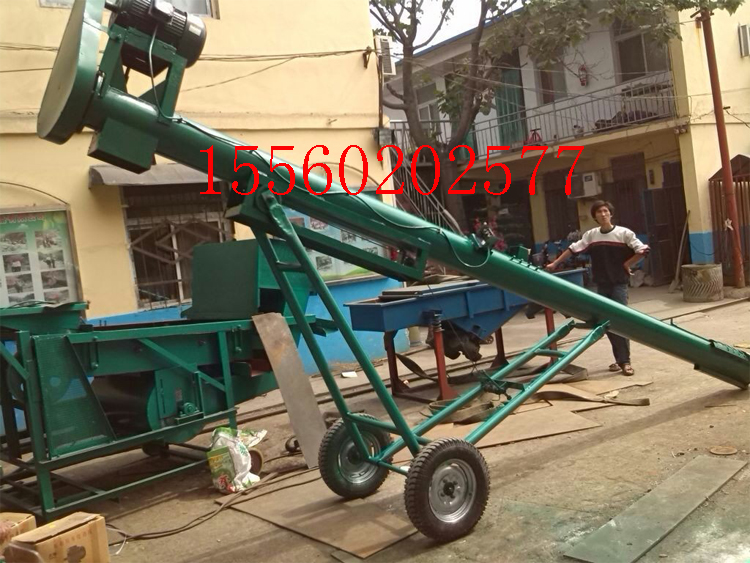

移動螺旋輸送機的外殼是由鋼管通過法蘭將各部分聯接為整體，進出料口和傾斜角度可根據現場情況設計安裝，也可設計成可調傾斜角度的形式。移動螺旋輸送機最大的特點是設備下安裝有萬向輪可隨意移動，特別適合散狀物料裝車等不固定位置的作業。

材質

移動螺旋輸送機的螺旋葉片采用盤形鋼帶軋制或單片組焊而成的整體連續葉片。移動式螺旋輸送機無論是水平，傾斜還是垂直狀態均可連續輸連，具有良好的密封性，無粉塵泄漏。它的螺旋體直徑小、轉速高、輸送量大，特別適用于傾斜和垂直輸送。在材質上有碳鋼、不銹鋼等材質。避免管壁間隙中粘附物料；密封結構，減少粉塵外揚；本產品可根據客戶和現場要求定制和安裝。

工作原理

旋轉的螺旋葉片將物料推移而進行螺旋輸送機輸送，使物料不與螺旋輸送機葉片一起旋的國是物料自身重量和螺旋輸送機機殼對物料的摩擦阻力。螺旋輸送機旋轉軸上焊的螺旋葉片，葉片的面型根據輸送物料的不同有實體面型、帶式面型、葉片面型等型式。螺旋輸送機的螺旋軸在物料運動方向的終端有止推軸承以隨物料給螺旋的軸向反力，在機長較長時，應加中間吊掛軸承。
Mobile screw conveyor, conveyor is also called the ground dragon, is one of the conveyor.Widely used in feed, chemical industry, food processing, and food processing, food grain storage, various additives, construction and other industries of loose materials.
The characteristics of
Mobile screw conveyor shell is made of steel tube through the flange connection for each part as a whole, in and out of the mouth and tilt Angle can design installation according to the field situation, can also be designed in the form of adjustable Angle.The greatest characteristic of mobile screw conveyor is the equipment, the installation has a universal wheel can move, especially suitable for loading such as loose materials are not fixed location of the job.
The material
Mobile screw conveyor of the screw blade disc steel strip rolling or single compound and into a straight blade as a whole.Portable screw conveyor level, inclined or vertical state all can lose even row, good sealing, no dust leakage.The helix, bue to small diameter, high speed, especially suitable for the inclined and vertical transmission.On the material such as carbon steel, stainless steel materials.Avoid wall clearance of adhesive material;Seal structure, reduce dust in public;This product can according to the customer and site requirements and installation.
The working principle of
Rotating spiral blade for screw conveyor conveying the material goes on, the material does not spin with blades of screw conveyor is the kingdom of its own weight and screw conveyor casing material friction resistance of the material.Screw conveyor on the axis of rotation welding of spiral vane, the face of the blade type according to the different type has a solid surface of conveying material, belt type, such as blade surface type.Screw conveyor screw axis of the terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, the captain is longer, should add hanging bearing in the middle.
